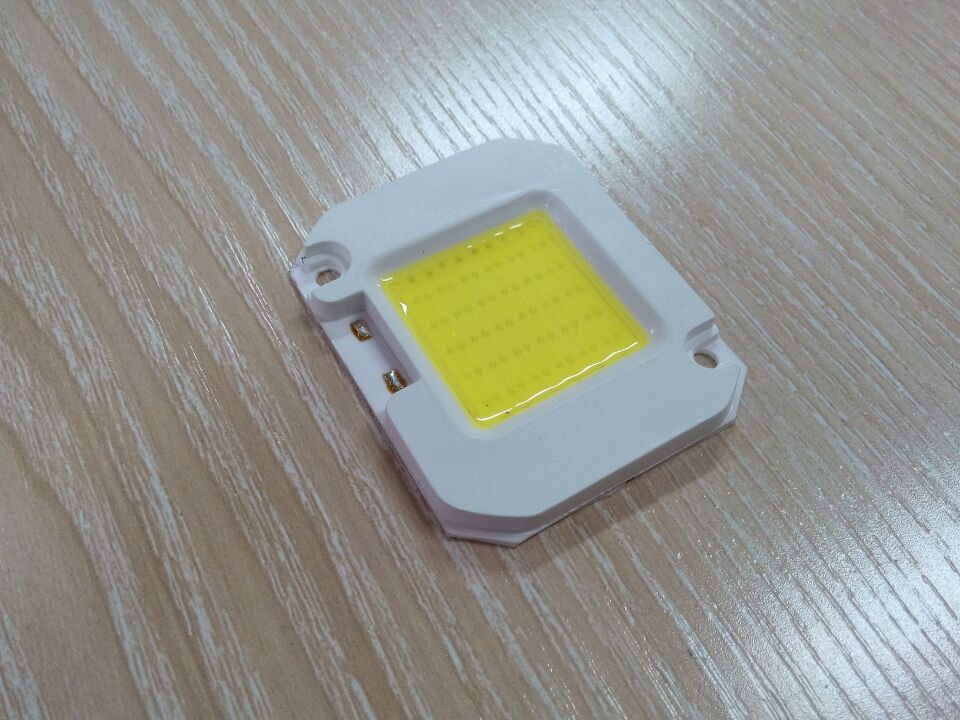

30W 110V/220V AC COB LED Dimmable with LED-Holder

INQUIRY DETAILS *

INQUIRY DETAILS
  • captcha

Product Detail

Parameter

Product Tags

Essential Parameter
Item AL-CR25Z300H-220VAC
COB LED Type AC COB LED
Power 30W
Voltage 110V/220V
Luminous Flux 3000lm
CRI 70-80Ra
LED Chip Epistar/Bridgelux
Color Temperature (CCT) 2700K-6400K
Certification CE,RoHS
Warranty 2 years
Dimensions
Overall Size 56mm x 40mm x 5mm
Lighting Size 25mm x 25mm
Lighting Angle 120°-160°
Material
LED Chip InGaN
LED Holder Plastic
Substrate Base Aluminum/Ceramic
Trade Info
Sample price USD 7.30/pc
EXW price Please send Email to ask latest price
Payment Term Paypal,T/T
Weights
Net Weight 20g
Carton Weight 0.5kg

The AC COB LED Series:

Product Picture Part No. Power Forward
Voltage
pcb type Lumen
output
CCT CRI
AL-CR11Z50H-220VAC 5w/7w/10w AC110V/220V Ceramic/ Aluminum 100lm/w-110lm/w 2700-6400k 70-80Ra
AL-CR19Z70H-220VAC 7w/15w/20w/30w
AL-CS10Z100H-220VAC 10w
AL-CR22Z200H-220VAC 20w/25w/30w
AL-CS25Z300H-220VAC 20w/30w
AL-CR25Z500H-220VAC 50w/100w

30w 220v cob

30w 110v cob led chip

30w 220v cob led

30w ac cob led

ac cob led chip module
